2GIG-PIR100-345

345S Passive Infrared Motion Detector

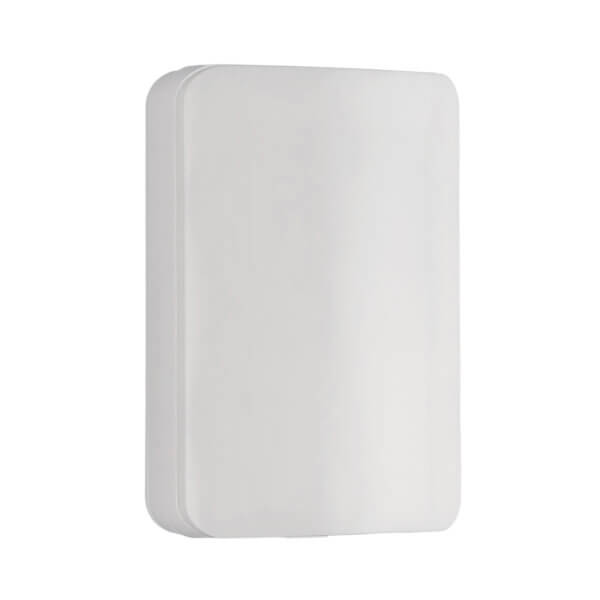

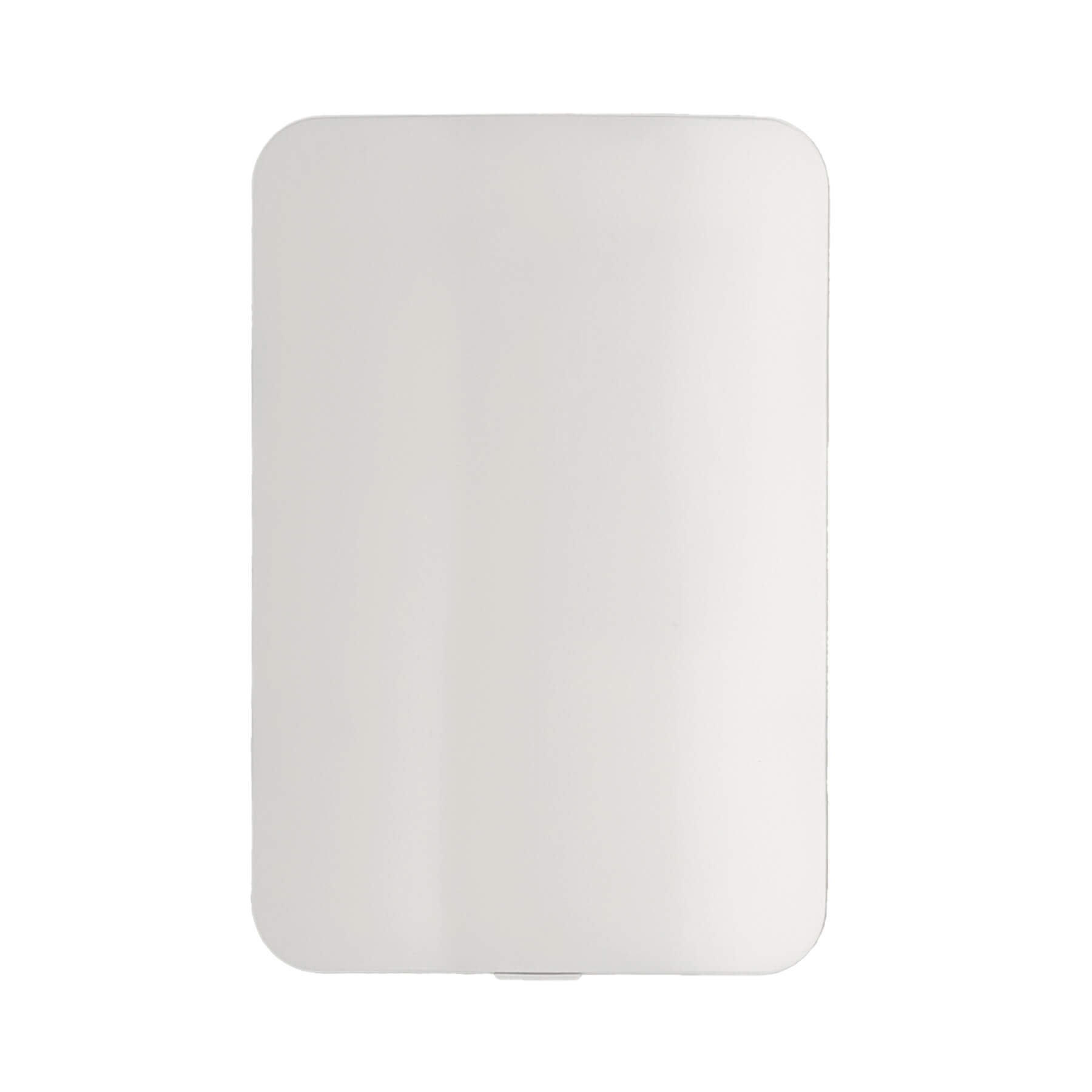

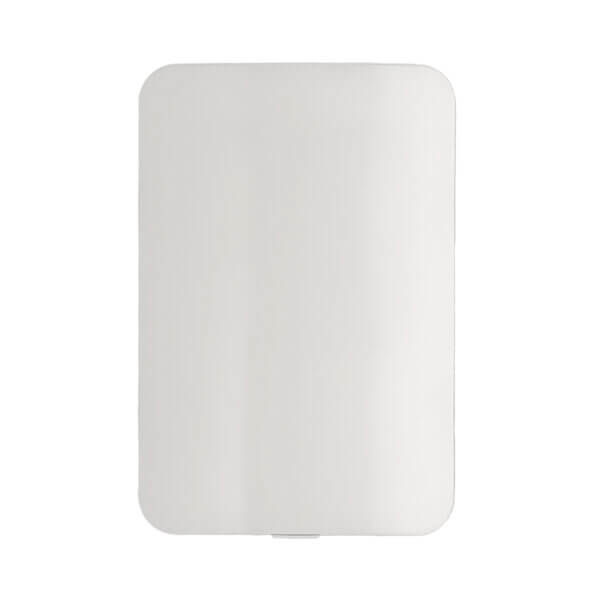

The 2GIG PIR100-345 Passive Infrared Motion Detector is a wall-mounted unit with wide-angle motion protection. It communicates with the control panel using the 345MHz frequency. When set to High Sensitivity Mode (default), the 2GIG-PIR-345 has a maximum range of 30 ft deep x 50 ft wide.

Coming Soon!

Description

The 2GIG PIR100-345 Passive Infrared Motion Detector is a wall-mounted unit with wide-angle motion protection. It communicates with the control panel using the 345MHz frequency. When set to High Sensitivity Mode (default), the 2GIG-PIR-345 has a maximum range of 30 ft deep x 50 ft wide.

Features

• Impressive detection range of 30 by 50 ft for comprehensive coverage

• Includes pet immunity, filtering out movements of pets weighing up to 85 lbs. Minimizes false alarms, and includes installer-adjustable setting to on/off

• Battery life of up to 7 years

• Ships non-encrypted by default; encryption activated via onboard switch

Specifications

  • Transmitter Frequency: 345MHz
  • Compatibility: 2GIG Panels
  • Code Outputs: Alarm, Alarm Restore, Tamper, Tamper Restore, Supervisory, Low Battery
  • Supervisory Interval: 70 Minutes
  • Sensor Type: Quad Element
  • Pet Immunity: Up to 85 lbs (38 kg)
  • Suggested Mounting Height: 7.5 ft. (2.3 m)
  • Sensor Range: 30 ft. (9.1m) x 50 ft. (15.2 m)
  • Horizontal Sensing Angle: 100° Maximum Spread
  • Dimensions: (L x W x H) 3.53″ x 2.35″ x 1.63″ (5.4 x 6 x 4.1 cm)
  • Weight: 3.5 oz (98 g)
  • Housing Material: ABS Plastic
  • Operating Temperature: 32°-120° F (0°-49° C)
  • Relative Humidity: 5% to 90%, Non-condensing
  • Battery (Included): One CR 123A 3V or equivalent Lithium Battery
  • Certification: ETL, FCC, and IC

Downloads

2GIG PIR100-345 Datasheet

Paired with 2GIG EDGE™

The E+ Extended Range Sensors pair with the innovative 2GIG EDGE™ panel*, combining versatility and reliability.

*EDGE™ 1.3 update and onwards is required
