2GIG-DWR100-345

345S Recessed Door Window Contact Sensor

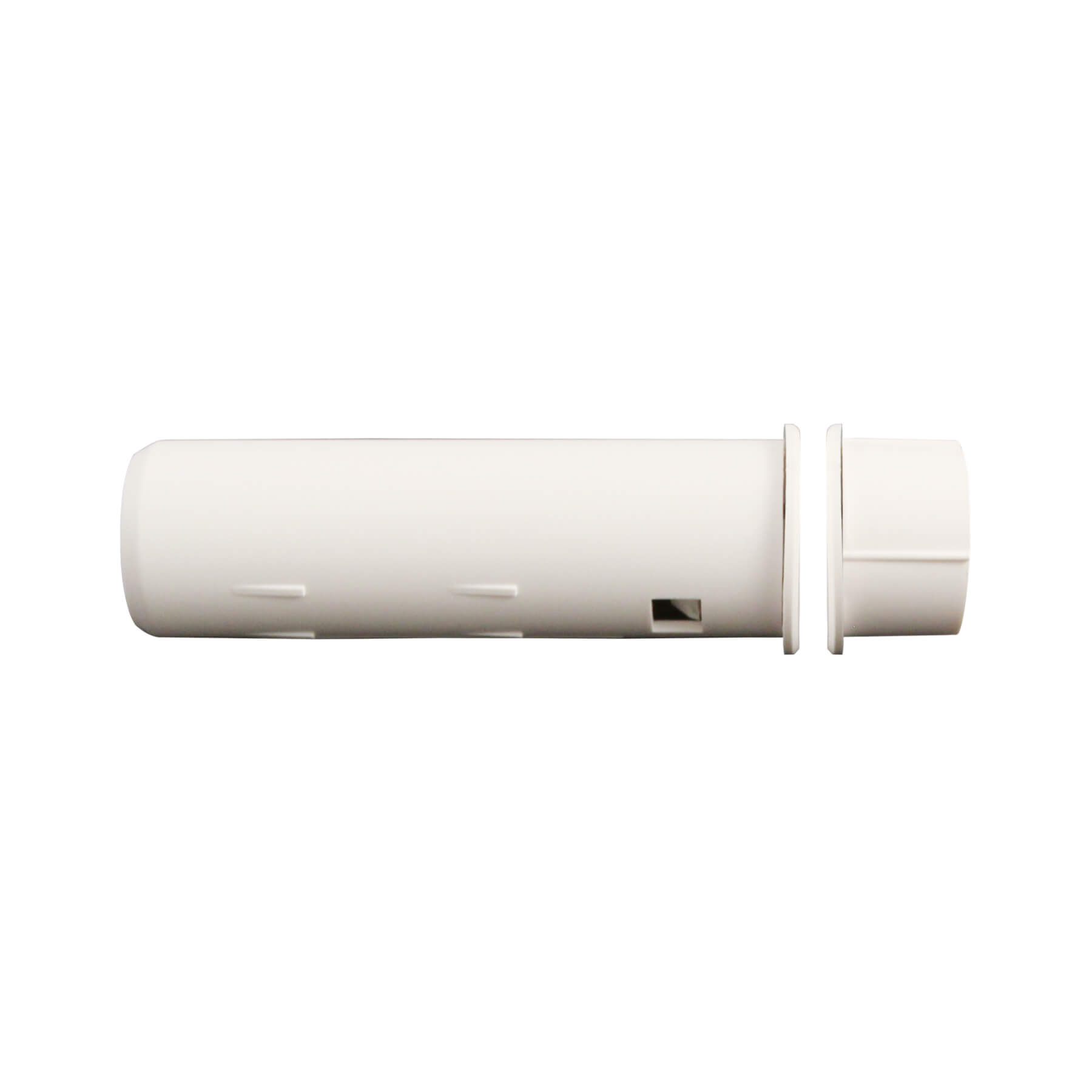

The 2GIG DWR100-345 is a wireless recessed door window contact sensor designed to protect your home or business.

Coming Soon

Description

The 2GIG DWR100-345 is a wireless recessed door window contact sensor designed to protect your home or business. This sensor uses a 345 MHz frequency to communicate with 2GIG control panel, transmitting signals when the magnet is separated from the sensor. It can be installed on doors, windows, and many other objects that open and close. The sensor transmits in encrypted mode by default and can be set to unencrypted mode via on-board switch.

Features

• Discreet, hidden design
• Battery life of up to 5 years, reducing frequent replacement and truck rolls
• Default non-encrypted; encryption enabled via onboard switch

Specifications

  • Transmitter Frequency: 345MHz
  • Compatibility: 2GIG Panels
  • Code Outputs: Alarm; Alarm Restore; Supervisory; Low Battery
  • Supervisory: Interval 70 Minutes
  • Magnet Type: Rare Earth
  • Magnet Dimensions: (H x D) 0.5 x 0.75 in (1.27 x 1.9 cm)
  • Sensor Dimensions: (H x D) 2.57 x 0.75in (6.53 x 1.9 cm) Weight 1.25 oz (35.4 g)
  • Housing Material: ABS Plastic
  • Operating Temperature: 32°-120° F (0°-49° C)
  • Relative Humidity: 5% to 90%, Non-condensing
  • Batteries (Installed): One 3V CR-2 Lithium Battery
  • Battery Life: Up to 5-years
  • Certification: ETL, FCC, Industry Canada

Downloads

2GIG DWR100-345 Datasheet

Paired with GC Touch™

The 2GIG GC Touch panel is a key element for customers’ security and smart home installs. Pair it with the all-new 2GIG 345S sensors that seamlessly integrate into any environment and include contact, PIR, glass break, smoke detectors, keyfobs, and more.

Learn More

Paired with 2GIG EDGE™

The E+ Extended Range Sensors pair with the innovative 2GIG EDGE™ panel*, combining versatility and reliability.

*EDGE™ 1.3 update and onwards is required

Learn More
