2GIG-FT100-345

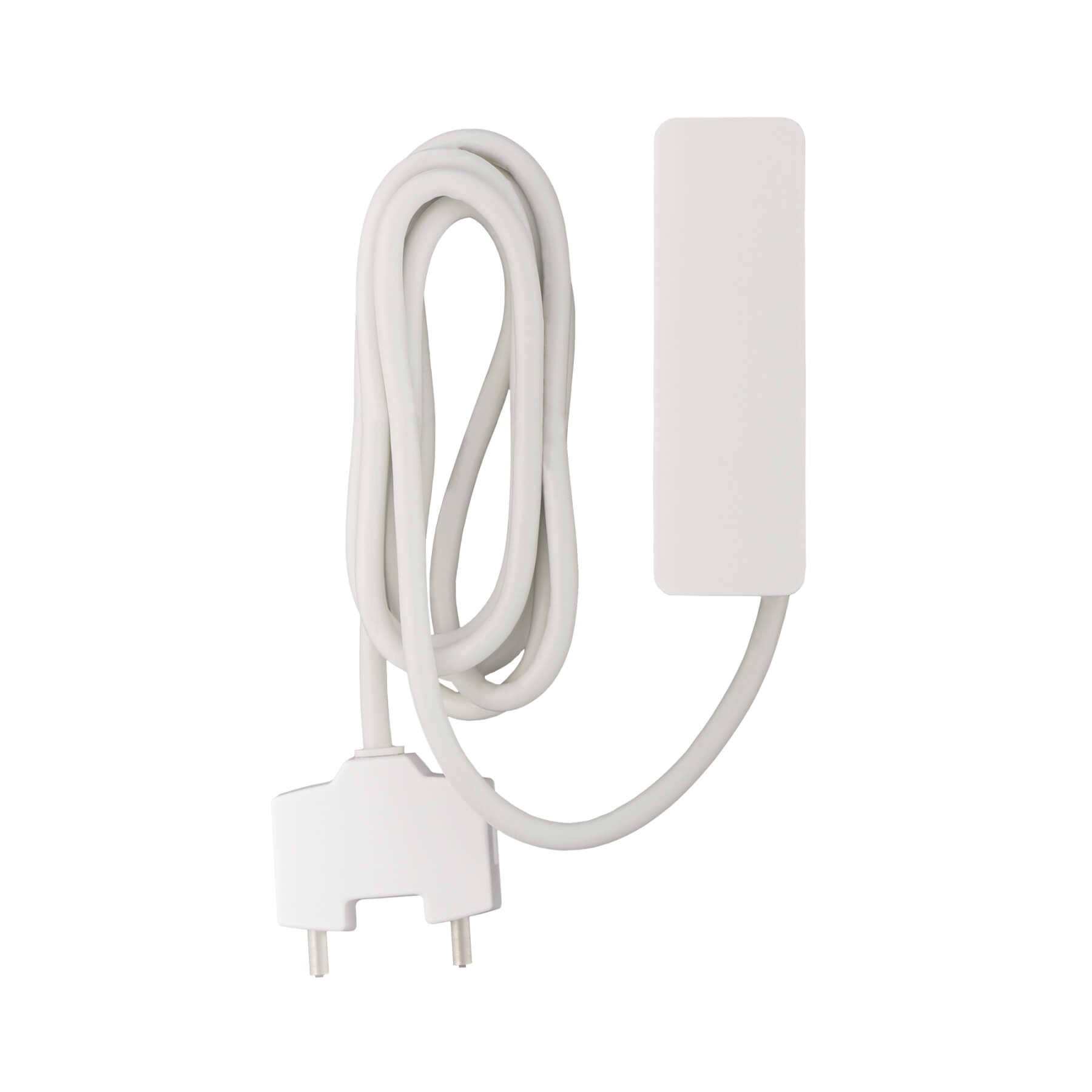

345S Wireless Flood/Temp Sensor

The 2GIG® FT100-345 Wireless Flood/Temp Sensor is a fully supervised and tamper protected 345 MHz sensor that will monitor the ambient temperature of a space for high or low temperature thresholds and report if changes outside of the defined settings are detected.

Coming Soon

Description

The 2GIG Wireless Floor/Tem Sensor is a fully supervised and tamper protected 345 MHz sensor that monitors the ambient temperature thresholds and reports if changes outside of the defined settings are detected. It also has the ability to detect and report the presence of water in the immediate sensor location. The sensor transmits in non-encrypted mode by default, and can be set to encrypted mode via an on-board switch.

Features

• Battery-powered design runs on oneCR 2.3V lithium battery

• Five-year battery life

• 345 MHz frequency

• Default non-encrypted; encryption enabledvia onboard switch

Specifications

  • Wireless Signal Range: 275 ft. (80 m) open-air with Wireless Control Panel
  • Code Outputs: Alarm; Alarm Restore; Supervisory Low Battery; Trouble; Trouble Restore
  • Transmitter Frequency: 345 MHz (crystal controlled)
  • Supervisory Interval: 70 minutes
  • High Temperature: level 95°F
  • Low Temperature: level 41°F
  • Housing Material: ABS Plastic
  • Dimensions: 2.4” diameter, 1.3” high

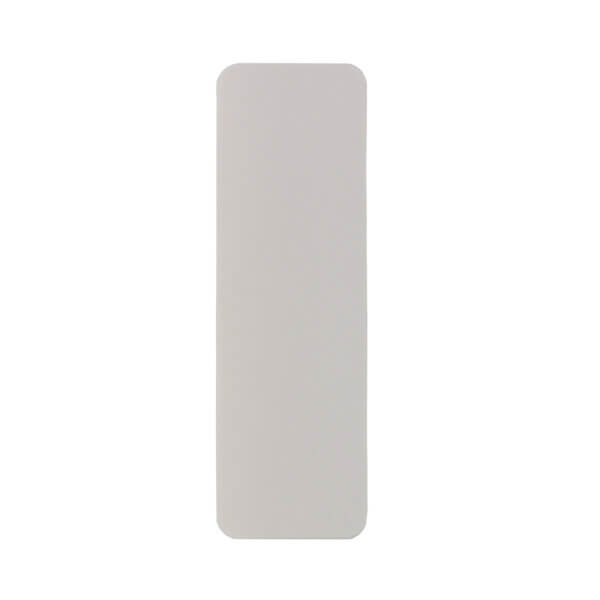

  • Sensor: 2.92” H x 0.94” W x 0.85” D (74.17mm H x 23.88mm W x 21.59mm)
  • Sensor Probe: 1.31” H x 1.34” W x 0.47” D (33.27mm H x 34.04mm W x 11.94mm)
  • Sensor Probe in Probe Bracket: 1.46” H x 1.54” W x 0.57” D (37.08mm H x 39.12mm W x 14.48mm D)
  • Cord between Sensor and Probe: 45” cord with 0.169” Diameter (114.3cm cord) (4.29mm Diameter)
  • Battery (included): One CR123A Lithium Battery
  • Certification: ETL, FCC, Industry Canada

Downloads

2GIG FT100-345 Datasheet

Paired with 2GIG EDGE™

The E+ Extended Range Sensors pair with the innovative 2GIG EDGE™ panel*, combining versatility and reliability.

*EDGE™ 1.3 update and onwards is required
