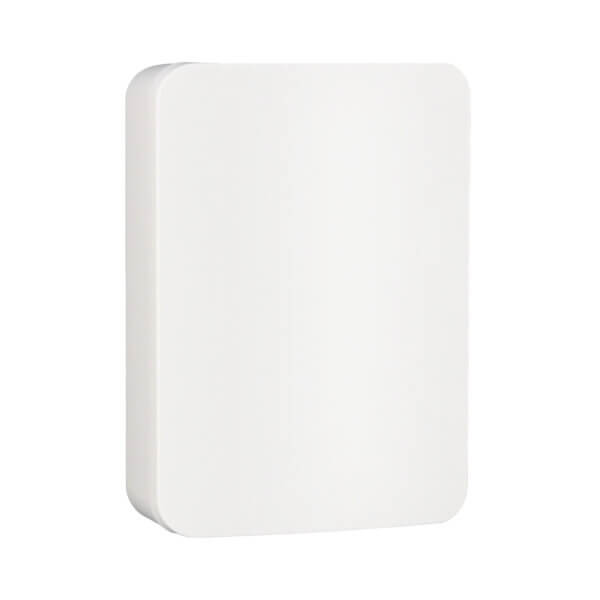

TAKE100-345 Angle Image

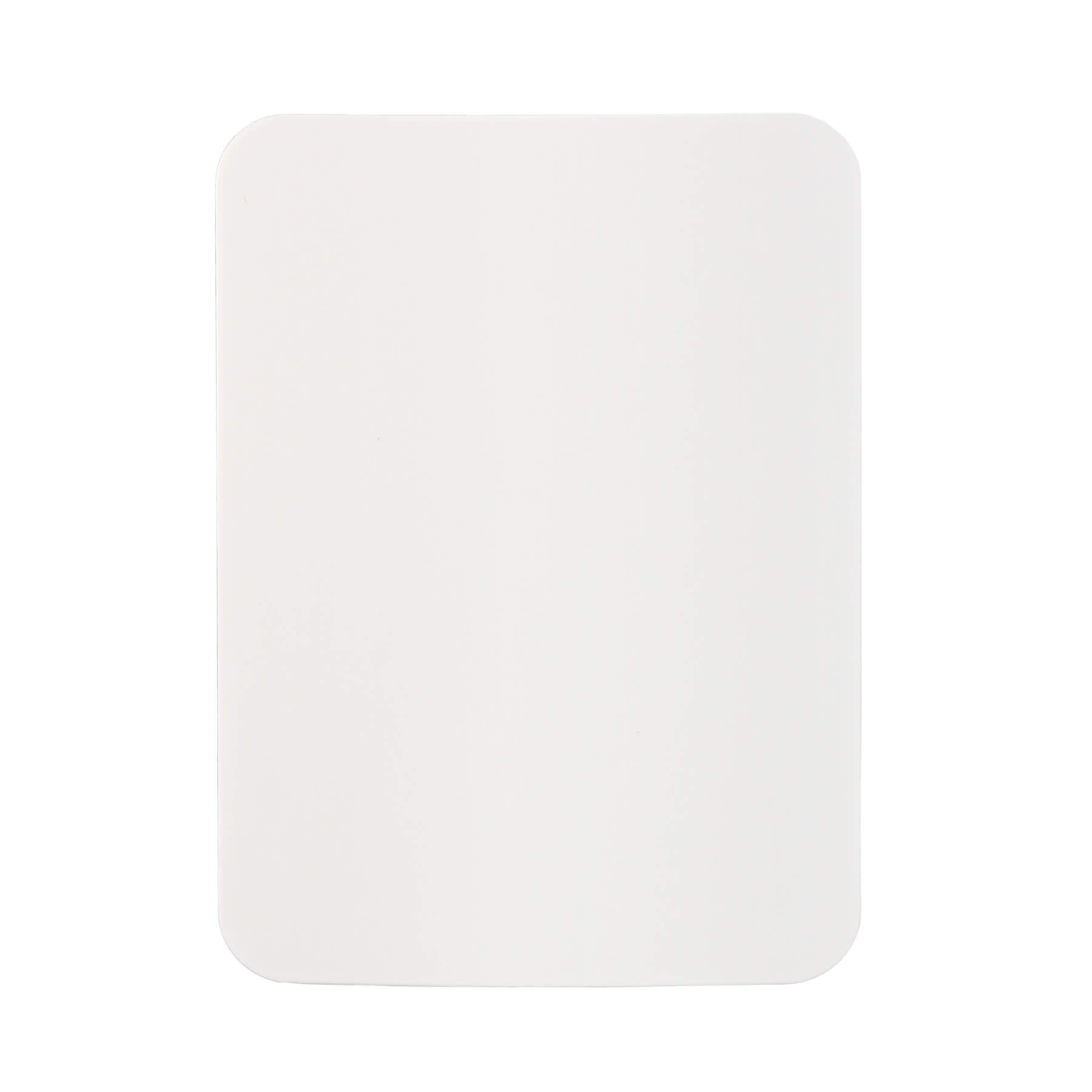

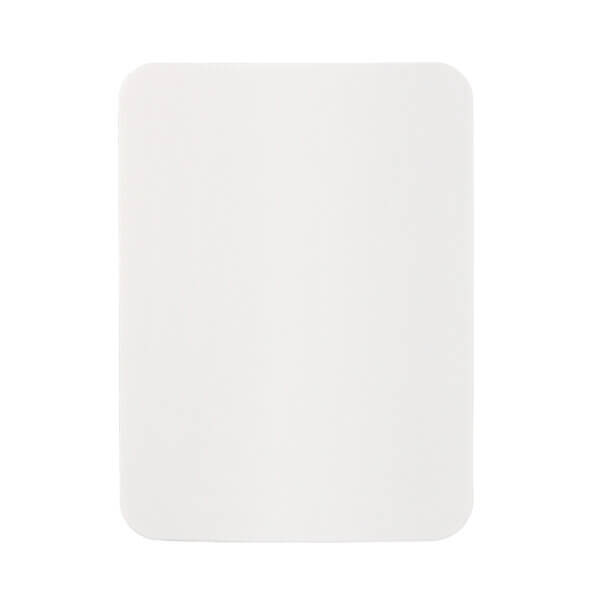

TAKE100-345 Front Image
2GIG-TAKE100-345

345S Wireless Hardwire Takeover Module

The 2GIG Wireless hardwire Takeover Module provides installers with an easy method for taking over a 12-volt prewired security alarm system and converting the existing hardwired zones into 2GIG wireless technology. The Takeover Module cannot be used to monitor Carbon Monoxide (CO) or Fire detection zones and is intended for indoor use only.

Coming Soon

Description

The 2GIG Wireless hardwire Takeover Module provides installers with an easy method for taking over a 12-volt prewired security alarm system and converting the existing hardwired zones into 2GIG wireless technology. The Takeover Module cannot be used to monitor Carbon Monoxide (CO) or Fire detection zones and is intended for indoor use only.

Features

• Converts 8 zones per module (additional modules may be added)

• Converts hardwired loops into as many as 8 wireless zones

• Supports up to 500 mA for wired motion sensors and glass break sensors

• 2GIG 345MHz compatible

• Can be powered by and use backup battery of an existing alarm panel

• Charging circuit for backup battery with LED status lighting

• ETL listed

• Supports encryption via an on-board switch

Specifications

  • Frequency: 345MHz
  • Input Voltage: 16.5~20VAC
  • Backup Battery: Up to 12VDC 7AH
  • Dimension: 3.53″ (89.7mm) x 2.56″ (65.0mm) x 1.22″ (31.0mm)
  • Weight: 3.21 oz (90.9g)
  • Operating Temperature: 32°-120° F (0° to 49° C)
  • Humidity: 5-95% Non-Condensing
  • AC barrel connector: DC power barrel plug, type A: 5.5mm OD, 2.1 mm ID
  • Input Voltage: 9-16VDC or 16.5-20VAC
  • Aux Output: 10-16V, 500mA
  • Supported Zones: 8 wired zones; 1 self-monitor zone
  • Regulatory: ETL, FCC, Industry Canada

Downloads

2GIG TAKE100-345 Datasheet
