2GIG-PANIC100-345

345S Wireless Panic Button Pendant Remote

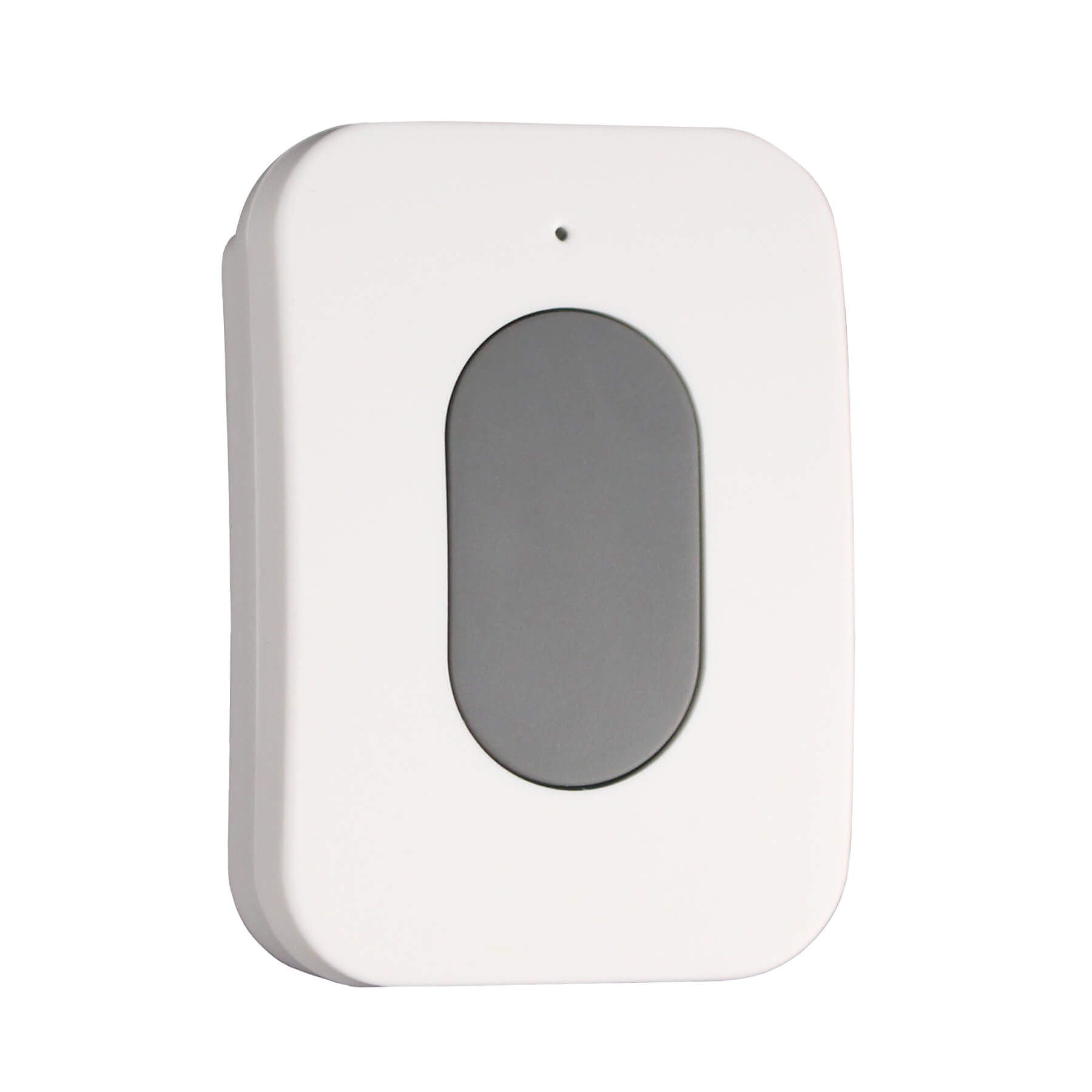

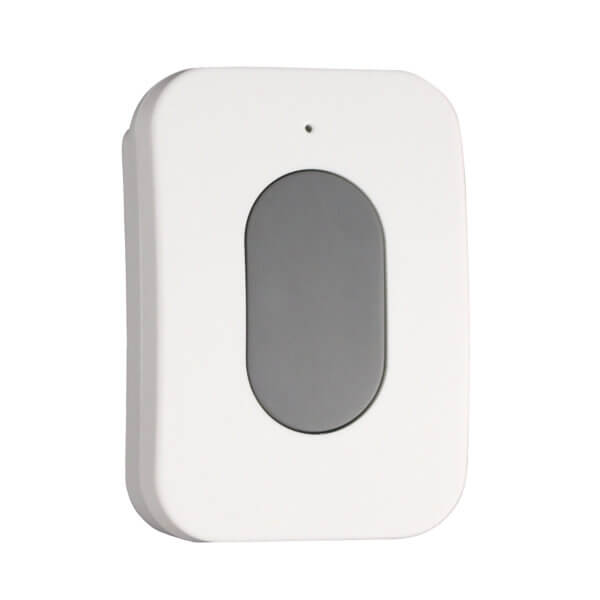

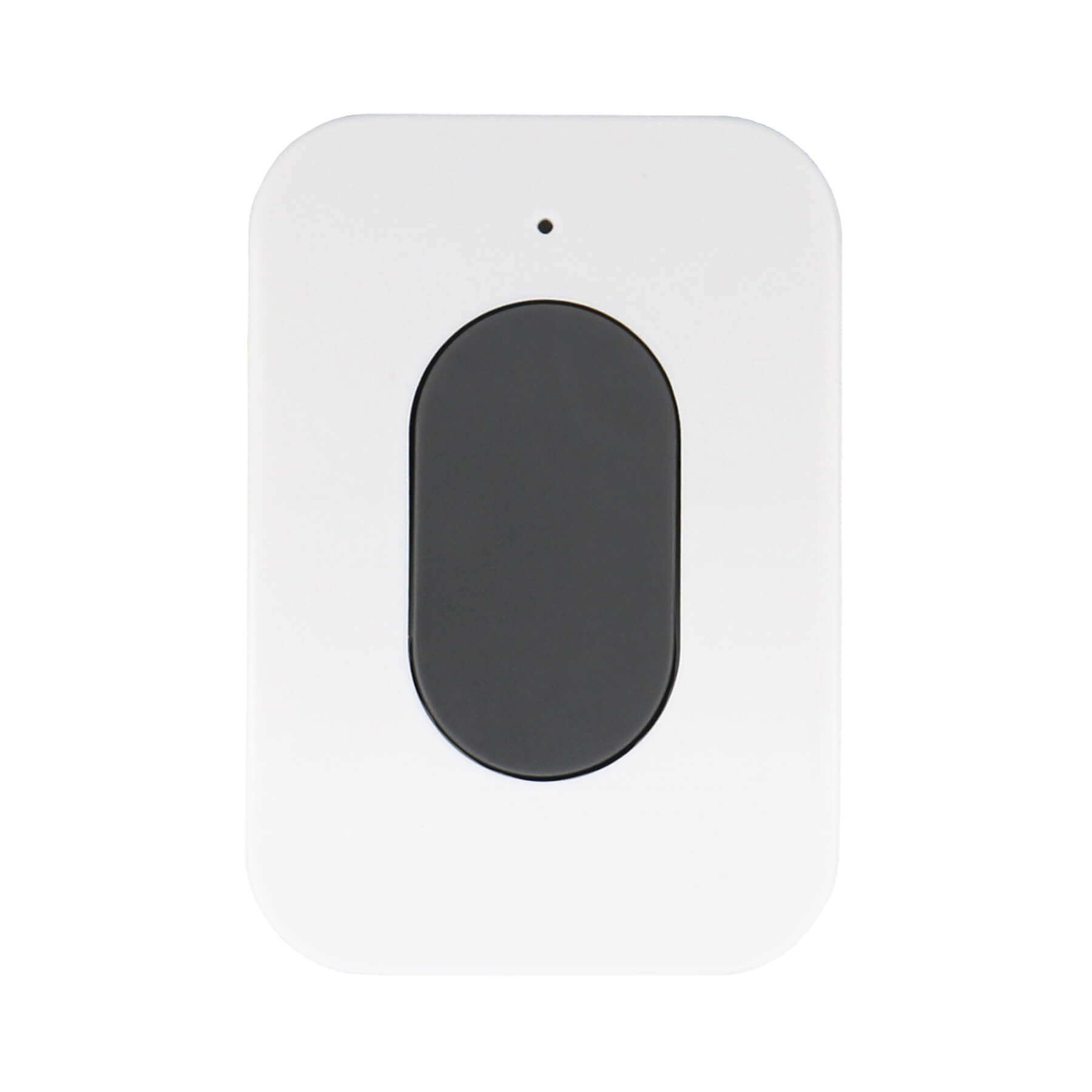

The 2GIG Panic Button Remote is a compact, battery-powered, wireless device that transmits an emergency signal from any location within RF range of the control panel, regardless of whether the system is armed or disarmed.

Coming Soon

Description

The 2GIG Panic Button Remote is a compact, battery-powered, wireless device that transmits an emergency signal from any location within RF range of the control panel, regardless of whether the system is armed or disarmed. It can be mounted on a wall or worn using one of several options: lanyard, wristband, belt clip, or car visor clip. The button is fully water-resistant, ensuring reliable performance even in damp environments. To prevent accidental activations, it features a five-second button lockout after use.

Specifications

Wireless Signal Range: 500 ft (152.4m), open air, with Wireless Control Panel

Code Outputs: Alarm; Supervisory; Low Battery

Transmitter Frequency: 345.000 MHz (crystal controlled)

Unique ID Codes: Over one (1) million different code combinations

Supervisory Interval: 70 minutes

LED: RED when activated

Dimensions: (L x W x H) 1.65 x 1.20 x 0.50 in. (4.19 x 3.05 x 1.27 cm)

Weight (including battery and bracket): 0.45 oz. (12.8 g)

Housing Material: ABS Plastic

Color: White, black button

Operating Temperature: 32°-120° F (0°-49° C)

Relative Humidity: Water-Resistant

Batteries: (Installed) One (1) Panasonic CR 2032 or equivalent Lithium battery

Certification: FCC/IC and ETL

Downloads

2GIG PANIC100-345 Datasheet

Paired with 2GIG EDGE™

The E+ Extended Range Sensors pair with the innovative 2GIG EDGE™ panel*, combining versatility and reliability.

*EDGE™ 1.3 update and onwards is required

Learn More
