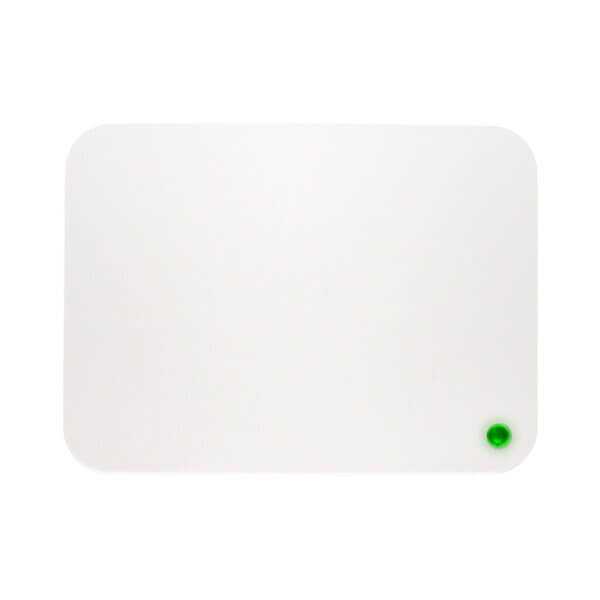

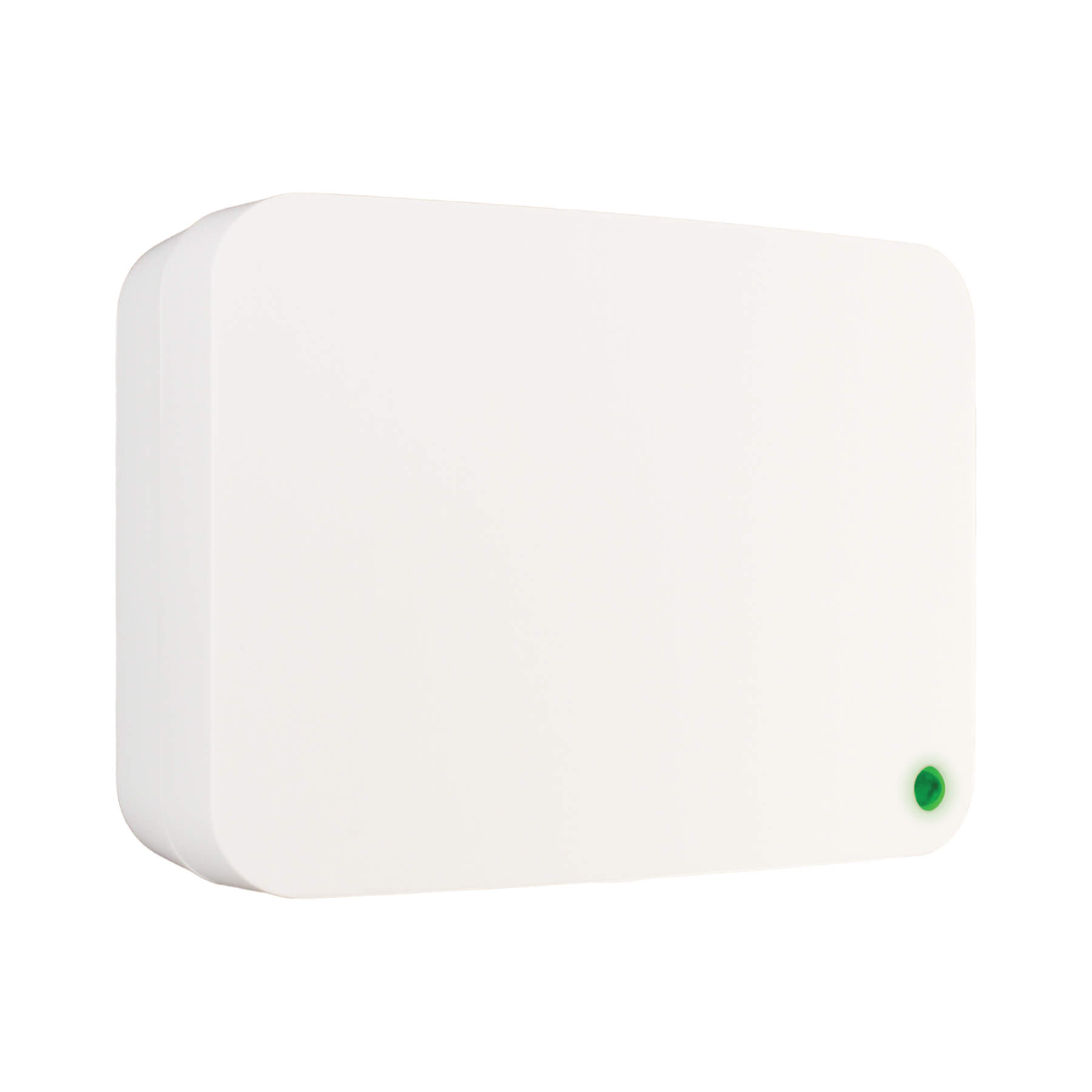

2GIG-RPTR100-345

345S Wireless Repeater

The 2GIG 345MHz Repeater enhances 2GIG security systems by offering greater flexibility in wireless sensor placement. It can be strategically positioned to extend the range of 2GIG panels, making it ideal for larger project.

Coming Soon

Description

The 2GIG 345MHz Repeater enhances 2GIG security systems by offering greater flexibility in wireless sensor placement. It can be strategically positioned to extend the range of 2GIG panels, making it ideal for larger projects. This device repeats both 2GIG and Honeywell sensor signals to 2GIG panels. As a plug-and-play unit, the Repeater begins signal repetition immediately upon powering on. In the event of an AC power outage, its rechargeable battery ensures continuous operation.

Features

• Repeats 2GIG and Honeywell signals on 345MHz frequency

• Repeats both encrypted and nonencrypted sensor signals out of the box

• On-off switchable supervisory encryption

• 24-hour backup battery included

• Repeat indicator in the signal eliminates “repeated signal storm”

• Optional zone programming to supervise Tamper, AC Loss, and Low Battery

Specifications

  • Overall Size: 102 X 76 X 46 mm (4.0” X 3.0” X 1.8”)
  • Weight (without battery): 125 g (4.4 oz.)
  • Installation Type: Wall mounted
  • Operating Frequency: 345 MHz
  • Operating Temperature Limits: -10° C to 55° C (14° F to 131 ° F)
  • Relative Humidity: 5 to 85% non-condensing
  • Power Type: Remotely powered by AC adapter, with internal battery backup
  • AC Adapter Nominal Input Voltage: 100–240 VAC 50/60 Hz
  • AC Adapter Nominal Output Voltage: 14 VDC

Downloads

2GIG RPTR100-345 Datasheet

Paired with 2GIG EDGE™

The E+ Extended Range Sensors pair with the innovative 2GIG EDGE™ panel*, combining versatility and reliability.

*EDGE™ 1.3 update and onwards is required

Learn More
