2GIG-DW100-345

345S Wireless Door/Window Contact Sensor

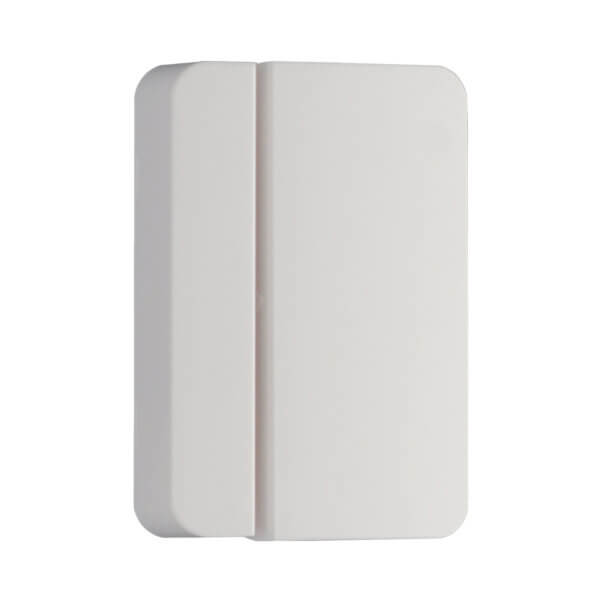

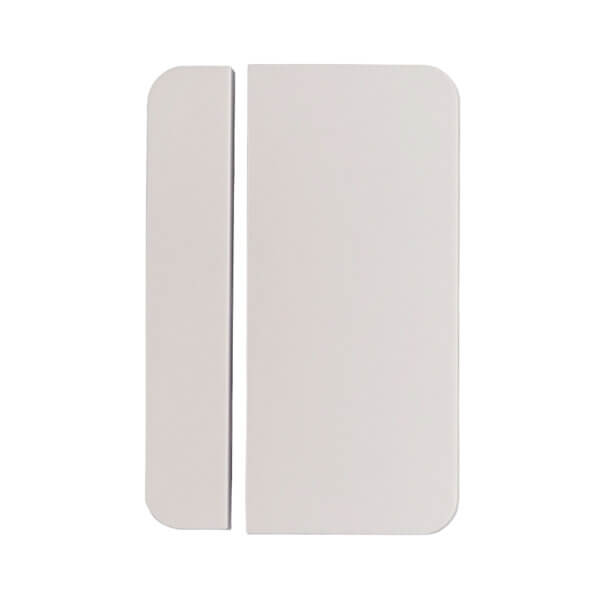

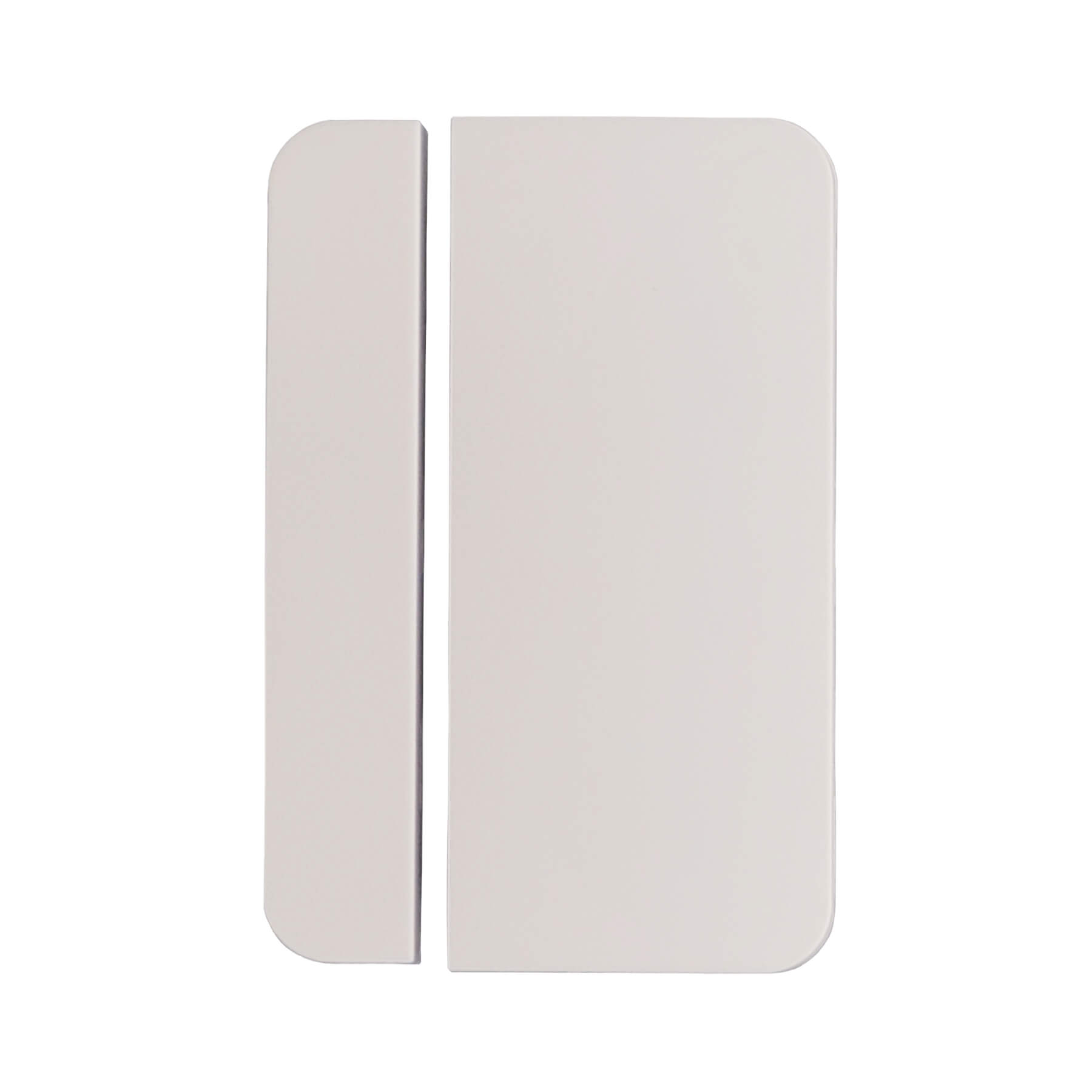

The 2GIG DWR100-345 is a wireless recessed door window contact sensor designed to protect your home or business.

Coming Soon

Description

The 2GIG DWR100-345 is a wireless recessed door window contact sensor designed to protect your home or business. This sensor uses a 345 MHz frequency to communicate with 2GIG control panel, transmitting signals when the magnet is separated from the sensor. It can be installed on doors, windows, and many other objects that open and close. The sensor transmits in encrypted mode by default and can be set to unencrypted mode via on-board switch.

Features

  • Designed for a seamless fit with an included spacer, enabling more door and window applications
  • Battery life of up to 8 years, reducing frequent replacement and truck rolls
  • Rounded outer with square interior enables accurate installation, for optimized installer experience
  • Supports external Normally Open or Normally Closed input
  • On/Off switchable encryption

Specifications

Transmitter Frequency: 345MHz
Compatibility: 2GIG Security Panels
Code Outputs: Alarm; Alarm Restore; Supervisory; Low Battery; External Alarm; External Restore; Tamper; Tamper Restore
Supervisory Interval: 70 Minutes
External Input: Accepts NC or NO dry contact devices
Magnet Type: Rare Earth
Magnet Dimensions: (L x W x H) 2.42” x 0.58” x 2.42” (6.1 x 1.47 x 6.1 cm)
Sensor Dimensions: (L x W x H) 2.42″ x 1.07″ x 0.58″ (6.1 x 2.7 x 1.47 cm)
Weight: 1.24 oz (35 g)
Housing Material: ABS Plastic
Operating Temperature: 32°-120° F (0°-49° C)
Relative Humidity: 5% to 90%, Non-condensing
Batteries (Installed): One CR 2450 Lithium Battery
Certification: ETL, FCC, Industry Canada

Downloads

2GIG DW100-345S Datasheet
